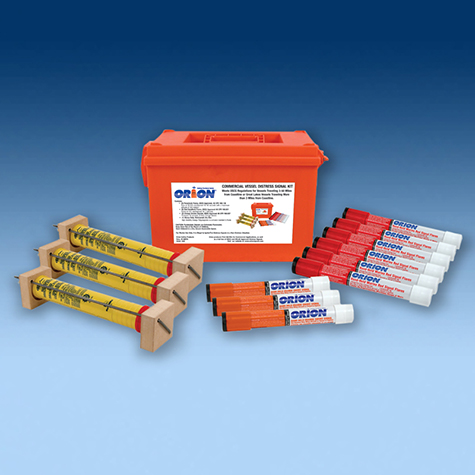

3-50 Mile Commercial Vessel Kit
Replaced with #822
Meets USCG regulations for ocean vessels traveling 3 to 50 miles from coastline or Great Lakes vessels traveling more than 3 miles from coastline.
3 Parachute Flares – SOLAS and USCG approved, 46 CFR 160.136, brightness up to 30,000 candela, burn time up to 40 seconds each, altitude up to 350 meters (1,150 feet).
6 Red Handheld Flares – USCG approved 46 CFR 160.021, brightness up to 700 candela, burn time up to 3 minutes each.
3 Handheld Orange Smoke Flares – USCG approved 46 CFR 160.037, burn time up to 1 minute each.
ORION Safety Manual – contains important safety warnings, use, storage, and inspection instructions for the Orion signal launcher and flares (aerial and handheld). Please read enclosed Safety Manual carefully before using or storing signaling products and retain for future reference.

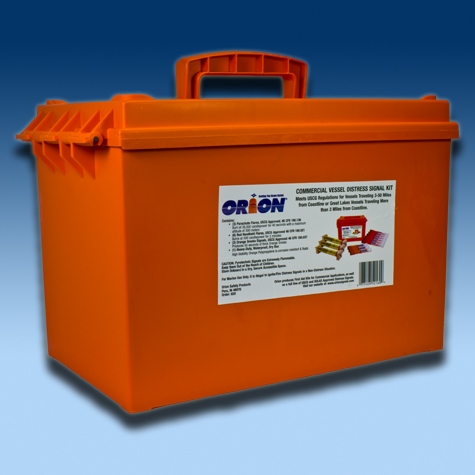

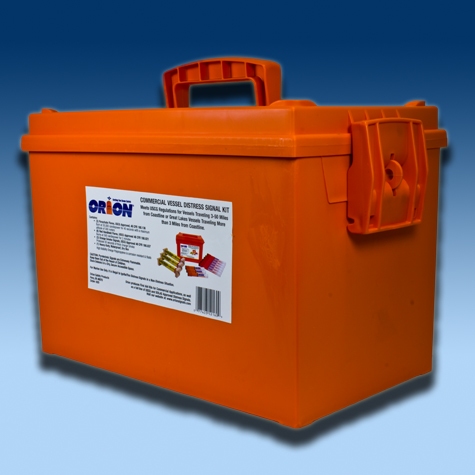

1 Heavy Duty Dry Box – high visibility orange polypropylene is corrosion resistant.
Specifications
Item Number: 820
Weight: 11 lbs each
Dimensions: 8.325 x 15.25 x 9.5
UPC: 077403521609
Packages Per Carton: 1
Dot Class: 1.4G UN0403
Net Explosive Weight: 972.6 grams per kit
Ex Number: EX2000090116
USCG Approved
CAUTIONARY INFORMATION
Flares are extremely flammable. Keep out of reach of children. When not in use, Launcher and Signals should be stored separately in a safe, secure location.
For Emergency Use Only. It is illegal to ignite/fire distress signals in a non-distress situation. Flare launchers and aerial signals are not intended to be used as weapons. Flare Launchers used for any purpose other than emergency signaling may be subject to civil or criminal action, including under state fire laws.
Important Note-PLEASE READ!! All Orion Launchers are designed to be used exclusively with Orion Signals only. Use of any other signal or shell is dangerous and voids all claims and warranties. The Orion 12-Gauge Launcher is designed to fire Orion 12-Gauge, red and white aerial signals and Orion 12-Gauge High Performance single and twin red aerial signals. The Orion 25MM Launcher, with use of an Orion 12-Gauge converter, can also fire Orion 12-Gauge red and white aerial signals and Orion 12-Gauge High Performance single and twin red aerial signals.
Orion US Cost Guard Approved signals are produced and independently tested to the specification provided by the Code of Federal Regulation (CFR) 45, Part 160. Signal performance, however, can be negatively impacted if such signals are not stored properly. It is important that signals be stored in a secure, safe, dry area of your boat, and should be removed during periods of extended storage. All signals and launchers should be inspected at least once annually for damage caused by exposure to moisture or mishandling.
Always store Launcher unloaded!
